The Abrites Vehicle Diagnostic Software for Porsche is an extremely competent diagnostic tool aimed towards professionals working in the fields of diagnostics, key learning, advanced diagnostics, module adaptation and tuning (the last two are currently being implemented and will be available in the future versions of the software). It provides a “one tool for all needs” solution in terms of Porsche vehicle specialists worldwide. Its basic characteristics include the following:

Model

Identification

Read/Clear DTCs

Actual values / Input signals

Output test / Activations

Coding

Porsche 911 996 (1998 – 2005)

+

+

+

+

+

Porsche Boxster 986 (1997 – 2004)

+

+

+

+

+

Porsche Carrera GT (2002 – 2006)

+

+

+

+

+

Porsche 911 997 (2005 – 2010)

+

+

+

+

+

Porsche Boxster 987 (2005 – 2010)

+

+

+

+

+

Porsche Cayman 987 (2005 – 2010)

+

+

+

+

+

Porsche Cayenne 9PA(up to 2010)

+

+

+

+

+

Porsche Cayenne 92A(2010 up)

+

+

+

+

+

Porsche Panamera 970 (2010 up)

+

+

+

+

+

Porsche 911 991 (2012 up)

+

+

+

+

+

Porsche Boxster 981 (2012 up)

+

+

+

+

+

Porsche 918 Spyder (2013-2015)

+

+

+

+

+

Porsche Macan (2014 up)

+

+

+

+

+

Special Functions Descriptions and Pricing Below

Reading and updating internal control module configuration memory by diagnostic. Recalibration of control unit working characteristics (time, mileage).

Table of supported vehicles

Vehicle Model

Cluster calibration

Operating hours counter

Porsche 911 996 (1998 – 2005)

+

by OBDII for ECU ME7.8/ME7.2/ME5.2.2
Porsche Boxster 986 (1997 – 2004)

+

by OBDII for ECU ME7.8/ME7.2/ME5.2.2
Porsche Carrera GT (2002 – 2006)

+

by OBDII for ECU ME7.8/ME7.2/ME5.2.2
Porsche 911 997 (2005 – 2010)

+

by OBDII for ECU ME7.8/ME7.2/ME5.2.2
Porsche Boxster 987 (2005 – 2010)

+

by OBDII for ECU ME7.8/ME7.2/ME5.2.2
Porsche Cayman 987 (2005 – 2010)

+

by OBDII for ECU ME7.8/ME7.2/ME5.2.2
Porsche Cayenne 9PA(MY up to 2010)

+

Porsche Cayenne 92A(MY 2010 up)

+

Porsche Panamera 970 (2010 up)

+

Porsche 911 991 (2012 up)

+

Porsche Boxster 981 (2012 up)

+

540.00 Add to cart

  • Reading and modification of unit configuration (coding)
  • The live data monitoring function(actual values), which can be displayed in graph and table form as well as the simultaneous monitoring of a vast selection of parameters and values make for a powerful assistant when locating faults and/or abnormal behavior with the vehicle
  • Output test (activations) – This feature of the Abrites Diagnostics for Porsche allows the user to use the AVDI as an OEM diagnostic tool, locating faults from the detected electronic control modules
  • Input signals
  • Activations
  • Adaptation of control units
  • Key programming 9×6 series
  • Key programing 9×7 series
  • PIN code calculation
  • Control unit replacement

When faced with the challenge of preparing a key for a Porsche vehicle the Abrites Diagnostics for Porsche manages it in a simple and informative manner. It lets the user choose the method (when available) and provides constant onscreen, step-by-step instructions in order to assure the final result is successful. The key learning option is often considered by our customers to be even more powerful than even the factory testers.



Table of supported vehicles

Vehicle Model

Read Login/Teach enable code

Service interval reset

Teach immobilizer

Key programming

Key learning

Steering angle sensor calibration

Porsche 911 996 (1998 – 2005) by dump of the Alarm module

+

+

N/A

+

+

Porsche Boxster 986 (1997 – 2004) by dump of the Alarm module

+

+

N/A

+

+

Porsche Carrera GT (2002 – 2006) by dump of the Alarm module

+

+

N/A

+

+

Porsche 911 997 (2005 – 2010)

+

+

+

+

+

Porsche Boxster 987 (2005 – 2010)

+

+

+

+

+

Porsche Cayman 987 (2005 – 2010)

+

+

+

+

+

Porsche Cayenne 9PA(MY up to 2010) +

+

+

+

+

+

Porsche Cayenne 92A(MY 2010 up)

+

Porsche Panamera 970 (2010 up)

+

Porsche 911 991 (2012 up)

+

Porsche Boxster 981 (2012 up)

+



665.00 Add to cart

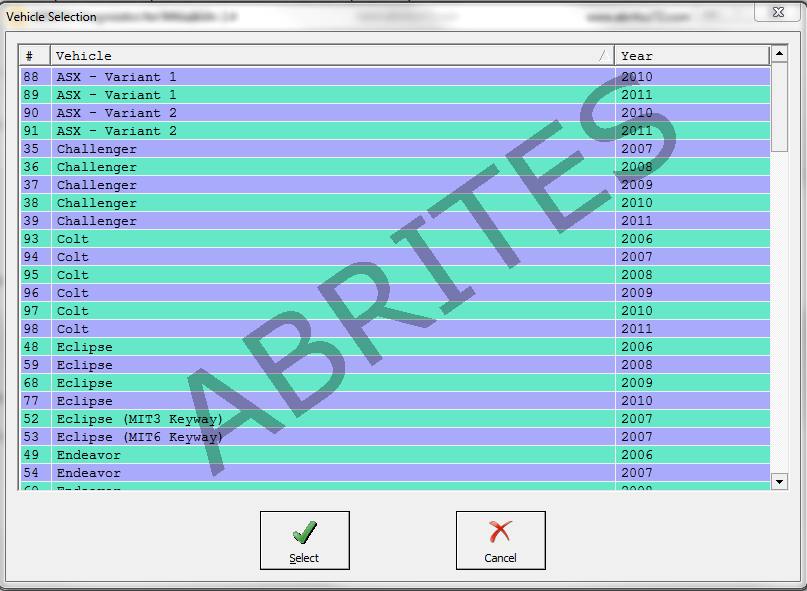

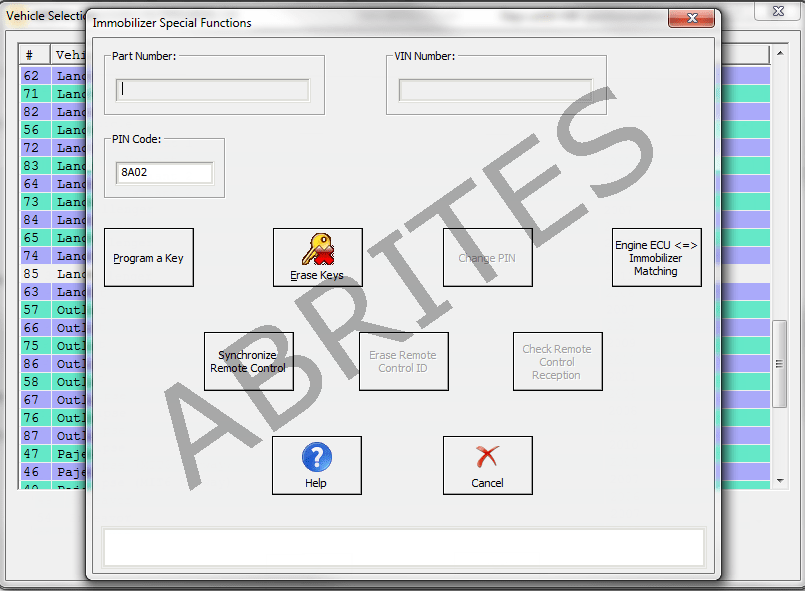

Screenshots
