Custom 19 Piece BDM Frame Adaptor Kit (PINOUT: CMD/ALIENTECH/DIMSPORT / STANDART)

775.00


PINOUTS  FOR ALIENTECH + CMD +  DIMSPORT + STANDART

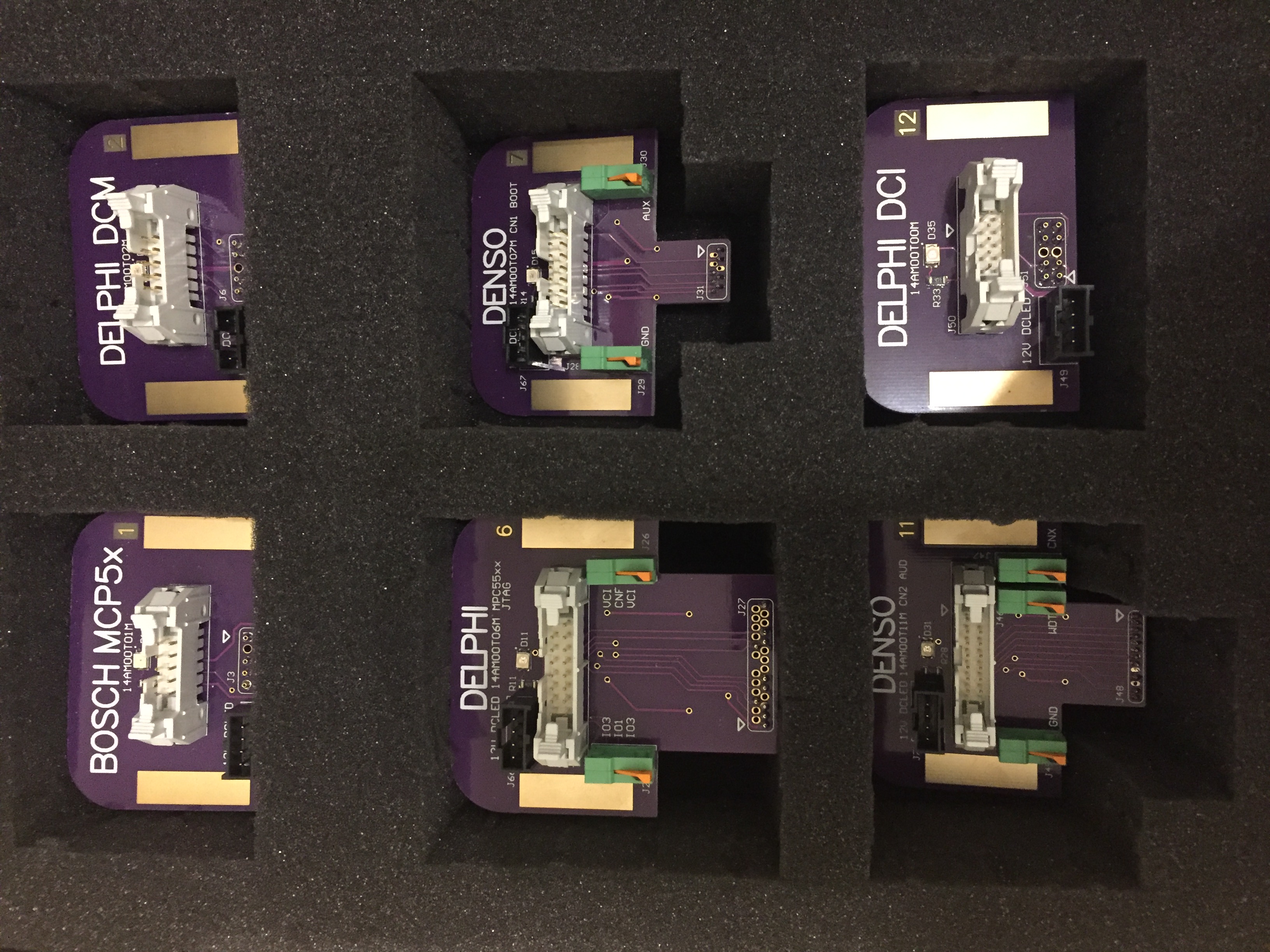

KTAG BDM ADAPTOR KIT 19pcs

– 14AM00T00M – Motorola MPC5xx ECU Delphi Dci

– 14AM00T01M – Motorola MPC5xx ECU BOSCH

– 14AM00T02M – Motorola MPC5xx Delphi DCM

– 14AM00T03M – ST10Fxx ECU Bosch MED/STD10

– 14P600KT04 – Infineon Tricore ECU Bosch EDC17/MED17

– 14AM00T05M – Nexus MPC5xxx ECU Marelli

– 14AM00T06M – Nexus MPC5xxx ECU Delphi

– 14AM00T07M – Renesas SH705x ECU Denso (write)

– 14AM00T08M – Renesas SH705x ECU Denso (write)

– 14AM00T09M – Renesas SH705x ECU Denso (write)

– 14AM00T10M – Renesas SH705x ECU Denso (read)

– 14AM00T11M – Renesas SH705x ECU Denso

– 14AM00T14M – Nexus EFI T6 Lotus

– 14AM00T15M – NBD NEC 76F00XX Board Type A

– 14AM00T16M – NBD NEC 76F00xx board Type B

– 14AM00TBAS – Motorola MPC5xx Multi-function Board

– 14AM00TB01 – Motorola MPC5xx Board Siemens

– 14AM00TB02 – Motorola MPC5xx Board Marelli

– 14AM00TB03 – Motorola MPC5xx Board Bosch EDC7

Description



bdmcasea9adaptors a6a8a7 a3a5a2a1adaptor1a5a4a1a4adaptors3a3a2
